The electro-hydraulically operated single deck crane is designed for handling containers and general cargo and offers to the client many advantages, such as:
Computer design with the result of robust construction and low dead weight.
All equipment is mounted in crane housing for protecting against marine ambinet condition.
High speeds for hoisting, luffing and slewing operations.
Two-fall operation at the hook for each load step,no reeving necessary.
Free 360°slewing range.
Can optionally be fitted with an auxiliary hoist.
Features and benefits:
Excellent positioning performance
Long outreach at an optimum weight
Robust design
All machinery is weather-protected inside crane housing
Level-luffing
Technical specification:
SWL
20T@30M
Max working radius
30m
Min working radius
7m
Hoisting speed
18m/min
Hoisting height
50m
Slewing speed
~0.8r/min
Slewing angle
360°
Luffing time
~120s
Working condition
Trim
≤2°
Heel
≤5°
Elec-motor
Y250M-4-H
Motor power
160KW
Motor speed
1780r/min
Power source
AC400/50HZ
Protect class
IP56
Insukate class F working type
S1

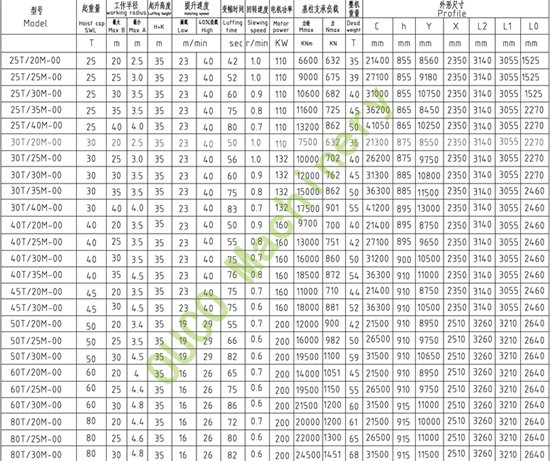

Model and Parameter for reference:

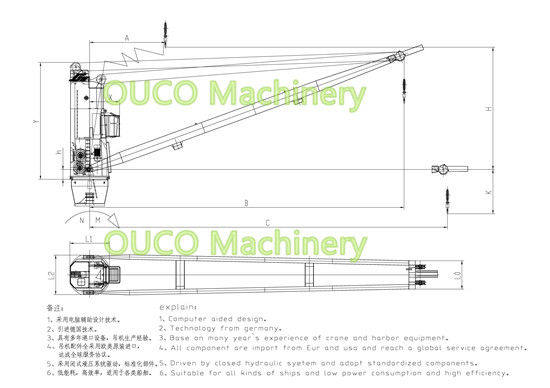

Genernal Arrangement:
OUCO Certifications:

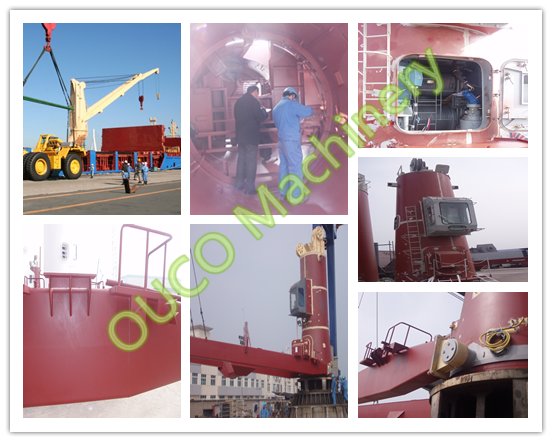

Manufacturing details at OUCO workshop:
We pay 100% attention to the packing before shipment:
