Product description
The telescopic series of cranes offer a diverse product line for application in the Luxury Yacht, Oceanographic, Workboat, Oilfield, Coast Guard or Military industries. These cranes can also be further customized for use in these most demanding of work environments.
All of the cranes in the Telescopic Boom line offer several key features that make them powerful solutions for the marine work environment. The most notable of these features include: Extended boom reach with the dexterity for accurate, safe, and efficient material handling.
Main Features and advantages
Easy maintenance at all situation
Self contained unit with integrated hydraulic power pack
Fail-safe brakes on all movements
Fully enclosed and equipped operator cabin with air condition
The variable speed hoist will automatically adjust to the highest possible speed for the appropriate load
Base on many year's design and fabrication experience of crane and other similar equipment
Suitable for all kinds of ships and low power consumption and high efficiency
Welded and high strength box boom for easy maintenance
With Many safety protection devices---hook up limiter and overload limiter, emergency stop button

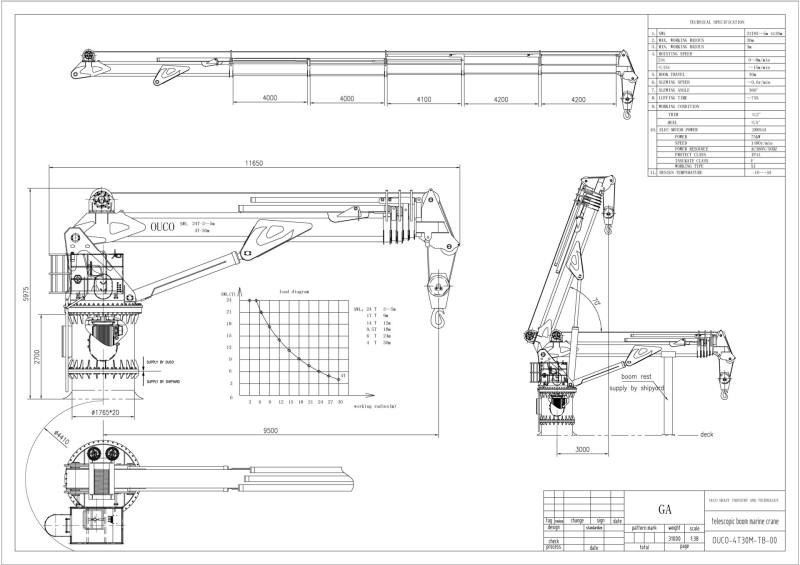

General Arrangement
Product information
| 1 | SWL | 4T@30M |
| 2 | Max. Working radius | 30m |
| 3 | Min. Working radius | 3m |
| 4 | Hoisting speed | 0~15m/min |
| 5 | Hoisting height | 35m |
| 6 | Slewing speed | ~0.6r/min |
| 7 | Slewing angle | 360º |
| 8 | Luffing time | ~90s |
| 9 | Working condition | TRIM≦2º |
| HEEL≦5º |
| 10 | Speed | 1780r/min |
| 11 | Power resource | AC 440V/60HZ/3P |
| 12 | Protect class | IP44 |
| 13 | Insurance class | F |
| 14 | Working type | S1 |
production process
Company Information
Company Information
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters.
OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China.
OUCO has more than 150 employees, 20 were technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.
FAQ
1.Q:What's the information should I provide when inquiry?
A: More details or drawings, better.
a: Lift capacity b: span c: lift height d: power sourceor other specials you give us will be more appreciated.
2.Q: How many operating methods for my selection?
A:Standard operating methodsr:
a: pendent controller with push buttons. b: remote control with push buttons
c: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Q:Can this type work in hazardous environment? A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.4. Q:Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
5. Q:How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training.
6. Q:Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
