Product Description
OUCO manufactures telescopic cranes in different boom lengths and depending on the crane’s application, we offer certification by all major classification societies and a broad set of available accessories. They are designed and manufactured in conformity with the current Marine Rules and they can be customized on request.
Product Feature
Compliance with the most demanding safety rules and regulations;
Overload protection;
Reliable long service life guaranteed through the use of high quality reputable components, extensive endurance testing and easy future upgrades.

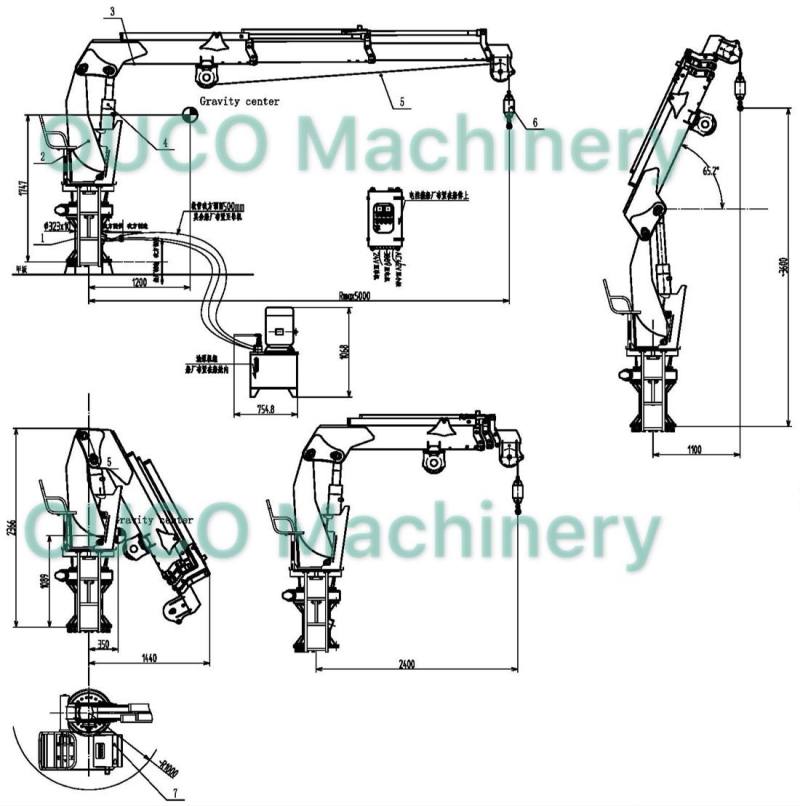

Technical specification
Product information
| SWL | 1T4M Yacht Crane |
| MAX WORKING RADIUS | 4m |
| MIN WORKING RADIUS | 1.7m |
| HOISTING SPEED | 0~15m/min |
| HOISTING HEIGHT | 20m |
| SLEWING SPEED | ~0.8r/min |
| SLEWING ANGLE | 360° |
| LUFFING TIME | ~ 40s |
| EXTENSION TIME | ~25s |
| WORKING CONDITION | TRIM ≤2°
HEEL ≤5° |
| POWER | 7.5kw |
| SPEED | 1450r/min |
| POWER RESOURCE | AC440V/60HZ |
Production Process
Company Information
Company Information
OUCO Industry, was established in February 1984, covers an area of 48,000 square meters, construction area is 35,000 square meters.
OUCO headquartered in crane hometown of Jiangsu Province where representing most advanced machinery manufacturing level in China.
OUCO has more than 150 employees, 20 were technical staff. Among that has five senior titles, 10 mid-level titles, and a total of 50 welder (who has got CCS, ABS and other main institutions’ certification). It also has professional organization certificated flaw detection staff, the quality system audit staff, and inspection personnel, etc.
FAQ
1.Q:What's the information should I provide when inquiry?
A: More details or drawings, better.
a: Lift capacity b: span c: lift height d: power sourceor other specials you give us will be more appreciated.
2.Q: How many operating methods for my selection?
A:Standard operating methodsr:
a: pendent controller with push buttons. b: remote control with push buttons
c: cabin(space capsule seat) control with joystick. Choose any type as you like.
3. Q:Can this type work in hazardous environment? A:Sure! We can customize for you, acid proof or explosion proof, no problem for that.4. Q:Can you provide the serious lifting tools?
A:Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, etc as your requirement!
5. Q:How can we install the crane?
A:Our senior engineer can be your side to do the installation guide service and training.
6. Q:Safety device
A:Overload limiter, Limit Switch (lifting and traveling), Interlock protection device.
